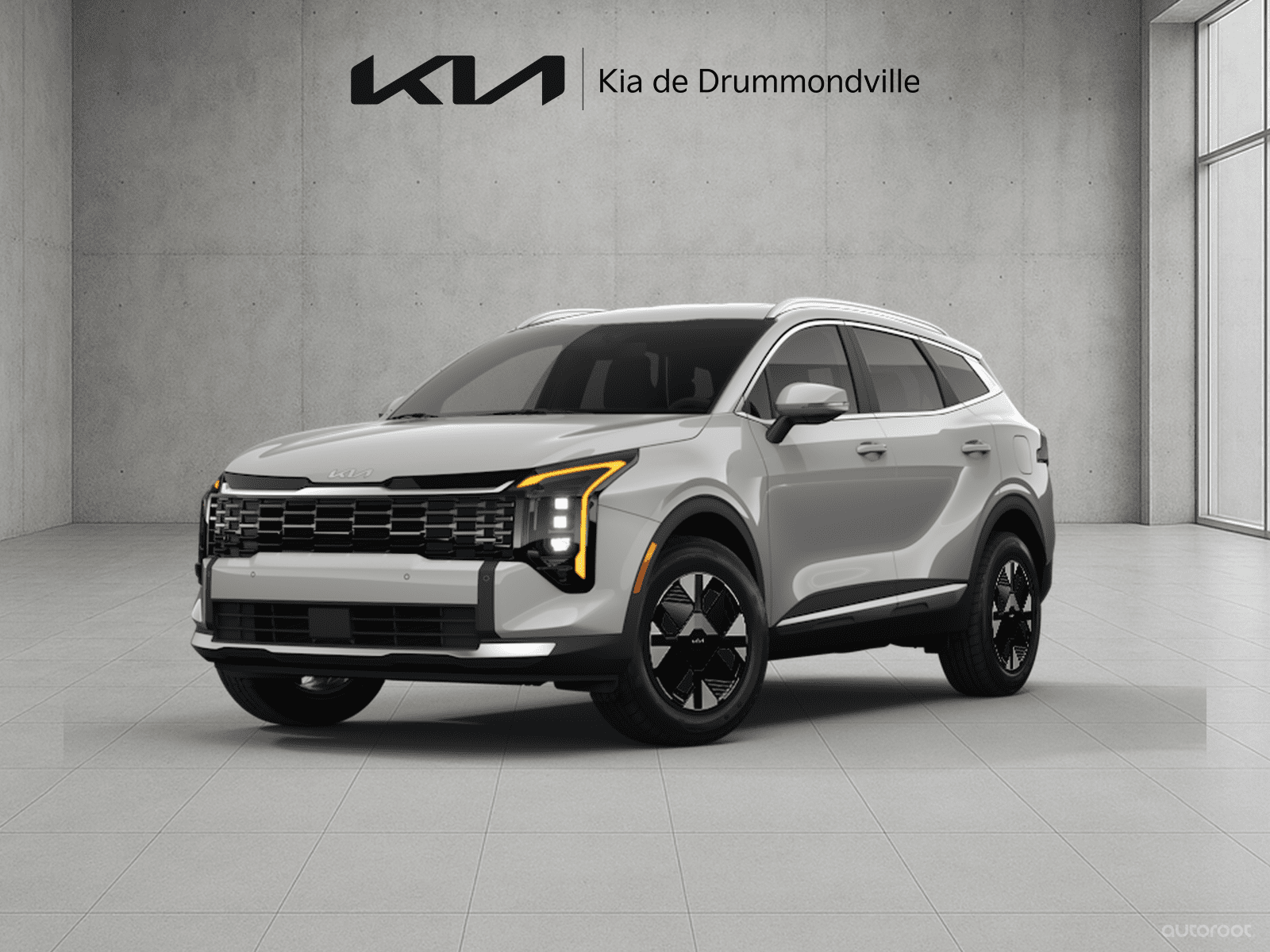

2026 Sportage HEV EX (SP651T)

VIN : KNDPVDDG2T7309303

Trim Description : EX

Drive Type : All-Wheel Drive

Transmission Type : Automatique

Fuel Type : Regular Unleaded

City Fuel Economy : 6.7L/100km

Highway Fuel Economy : 6.6L/100km

Combined Fuel Economy : 6.7L/100km

Battery Type : Lithium-ion

combined Powertrain Output : Horsepower : 232 hp | Torque : 271 lb-ft

Compression Ratio : 10.5

Displacement : 1,598

Electric Motor : Permanent Magnet Synchronous Motor

electric Motor Performance : Horsepower : 65hp @ 1800~2100rpm | Torque : 195 lb-ft @ 0 ~1700rpm

Engine Type : 1.6L Gamma II Turbo GDI HEV, 4-Cylinder

gasoline Engine Performance : Horsepower : 177 hp @ 5,500 rpm | Torque : 195 lb-ft @ 1,500 - 4,500 rpm

Valvetrain : 16V DOHC CVVT with Hydraulic Lash Adjuster (4-valves per cylinder)

Voltage : 270V

fifth Gear Ratio : 1.000

Final Drive : 3.320

first Gear Ratio : 4.639

fourth Gear Ratio : 1.386

reverse : 3.385

second Gear Ratio : 2.826

sixth Gear Ratio : 0.772

third Gear Ratio : 1.841

Transmission : 6 Speed Automatic

Transmission Configuration : All-Wheel Drive

Front Overhang : 930 mm

Gross Vehicle Weight : 5,093 lb

Head Room (Front) : 1,006 mm

Head Room (Rear) : 993 mm

Height : 1,678 mm

Hip Room (Front) : 1,392 mm

Hip Room (Rear) : 1,357 mm

Leg Room (Front) : 1,052 mm

Leg Room (Rear) : 1,050 mm

Length : 4,685 mm

max Curb Weight : 3,994 lb

Min Curb Weight : 3,803 lb

Minimum Ground Clearance : 210 mm

Rear Overhang : 1,000 mm

Shoulder Room (Front) : 1,461 mm

Shoulder Room (Rear) : 1,412 mm

Towing Capacity (When Equipped) : 2,000 lbs

Cargo Volume Behind 1st Row : Floor High : 1,852 L / Floor Low : 2,087 L

Cargo Volume Behind 2nd Row : Floor High : 977 L / Floor Low : 1,119 L

Wheelbase : 2,755 mm

Width : 1,865 mm

Estimated Fuel Economy (City) : 6.7L/100km

Estimated Fuel Economy (Combined) : 6.7L/100km

Estimated Fuel Economy (Hwy) : 6.6L/100km

Fuel System : Gasoline Direct Injection (GDI)

Recommended Fuel : Regular Unleaded
